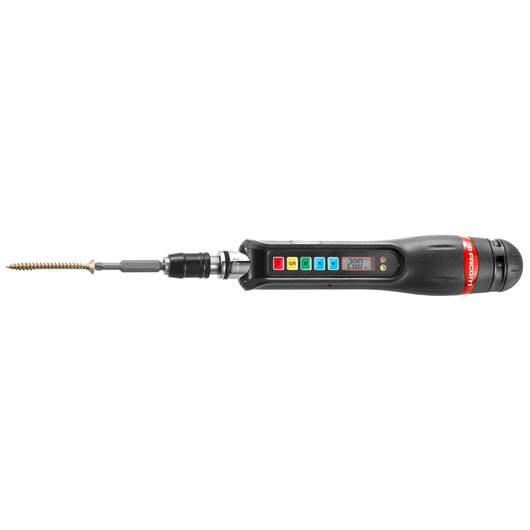

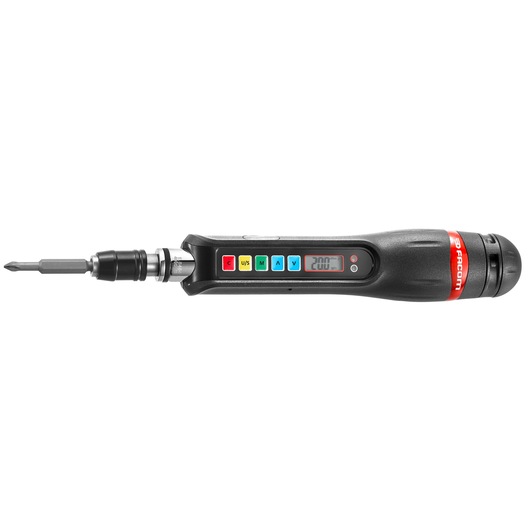

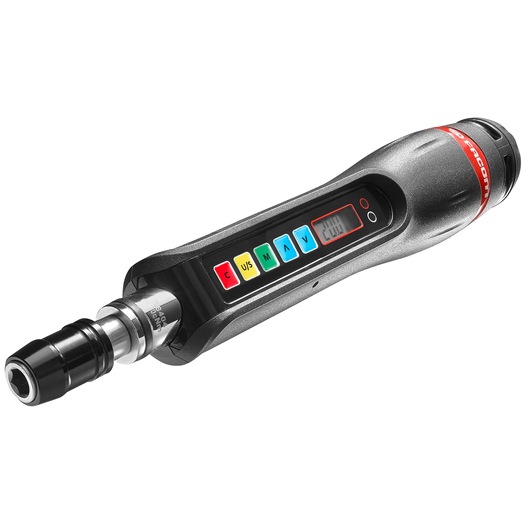

1/4 in. Electronic Torque Screwdriver, 4Nm
E.S404
1/4 in. Electronic Torque Screwdriver, 4Nm
- ACCURACY: ± 2% clockwise (± 3% counter clockwise) between 20% and 100% screwdriver capacity
- RESOLUTION: 0.1 cN.m
- MODE: Measurement mode, tip or follower
Additional Features
- BITS: 1/4" outlet with auto-locking system for series 1 and series 6 bits
- UNITS: Measurement unit, cN.m, in.lb, Kg.cm
- PRESET: 9 torque presets available

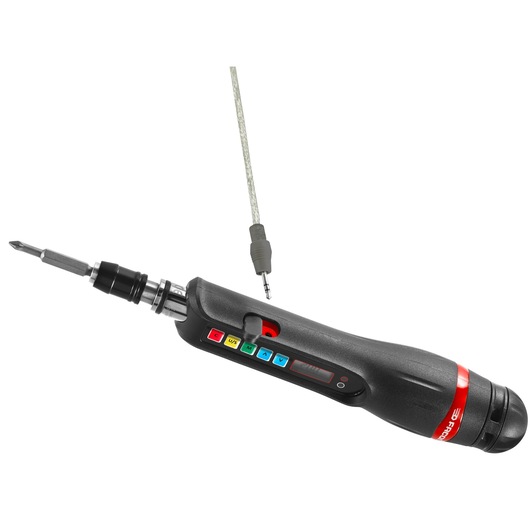

- MEMORY: Memory 250 values with PC USB link
- ACCESS: Locking keypad (the operator has access only to program choices and result memorising)
- SAFETY: Hole in the handle for strapping when working in high places
- BATTERY: Supplied with 1 AAA-LR03 1.5V battery
- CERTIFICATION: Supplied with an ISO 6789 calibration certificate
- STORAGE: Supplied in plastic case and foam module
- ACCESSORIES: USB cable E.S404-USB and plugs E.S404-KIT set available as spares
Specifications
|
Grip
|
Bi-Material
|
|
Min Torque [Metric]
|
0.4 Nm
|
|
Accuracy CW
|
+/-2%
|
|
Battery Quantity
|
1
|
|
Product Weight [Metric]
|
0.63 Kg
|
|
Setting Method
|
Buttons
|
|
Battery Source
|
Alkaline Battery (AAA)
|
|
Standards/Norms
|
DIN EN ISO 6789, ISO 6789, NF EN ISO 6789
|
|
Display Type
|
LED
|
|
Tethered
|
Yes
|
|
Connectivity
|
USB
|
|
Is it a Set
|
No
|
|
Packaging
|
Foam Module
|
|
Product Length [Metric]
|
215 mm
|
|
Resolution
|
0.1
|
Support
Warranty
- 3 Year Guarantee*
If this product becomes defective due to faulty materials or workmanship within 3 years from the date of purchase, we guarantee to repair or replace it free of charge.
*Terms & conditions apply.
