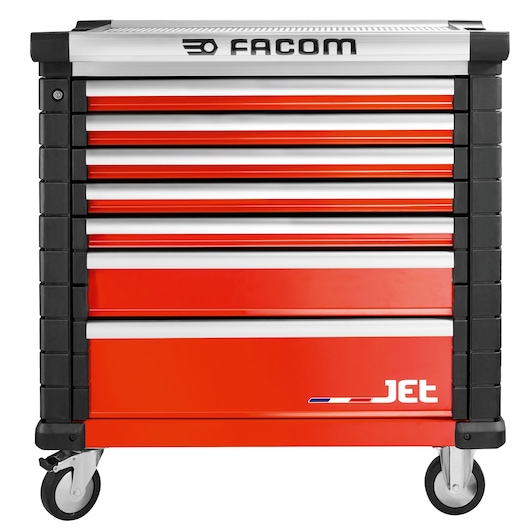

Roller Cabinet, 7 Drawers, L 759 x H 421 mm, 4 Modules Per Drawer, 0,37 m² Top
JET.7M4A
Roller Cabinet, 7 Drawers, L 759 x H 421 mm, 4 Modules Per Drawer, 0,37 m² Top
- 7 drawer roller cabinet = 24 modules in 60 and 130 mm drawers
- 5 drawers height 60 mm = 20 modules
- 1 drawer height 130 mm = 4 modules
Additional Features
- 1 drawer height 270 mm
- The drawers can be equipped with all the thermoformed or foam modules of the FACOM Modular system
- The 200 and 270 mm drawers can also be fitted with modules
- Fully opening drawers: Thanks to the ball bearing slides, the drawers open fully and have a capacity of 20/30/40 kg
- The "self-close" system with spring return offers an efficient and secure closure. 100% opening drawers for optimum ease of use
- Total load capacity of the drawers: 195 kg
- Total storage capacity: 205 litres
- Usable drawer dimensions: L 759 x D 421 x H 60/130/200 mm
- Supplied with 3 JET2.15 partitions for 60 mm drawers and 3 JET2.16 partitions for 130 mm drawers
- Additional partitions can be purchased as an option if required
- Worktop: Extra large work surface, usable area 797 x 461 mm, 0,37m². +25% vs JET
- High resistance: 2 mm thick aluminium plate covers a 15 mm thick wooden board. The ends are made of shock-resistant polypropylene. The tray can be fitted with a vice, is resistant to impacts and hydrocarbons and to a static load of 1000 kg
- Even more functional: Integrated bi-material handle with soft grip on each side of the trolley. One for moving and one for lifting the trolley over obstacles
- Innovation: The aluminium worktop rails have been designed as an integrated accessory hanging system
- The installation of accessories is fast and secure
- A wide range of accessories is available and will allow you to customise your workstation according to your needs to make it a real workstation
- Dedicated slots for 8 screwdrivers
- Integrated ledges prevent tools from falling out while moving
- Ergonomic and secure drawers: Exclusive design of aluminium tilting drawer handles with safety hooks. No risk of opening while in motion
- The high-quality self-closing system ensures closure and increases safety
- Central locking system with key lock, supplied with 2 keys, 1 of which is hinged
- Elastomeric thermoplastic bumpers on the 4 corners and on the drawers for shock absorption and damper effect
- Manoeuvrability: Low starting effort, long life, high resistance to heavy loads
- 4 wheels diameter 125 mm, 2 fixed and 2 swivel, each equipped with a brake for more stability when working at a standstill
- The trolley is delivered with the wheels already mounted
- Accessories: The worktop and sides of the trolley can be fitted with a wide range of accessories, from the most basic to the most sophisticated
- Top chest available as optional unit for added volume and flexibility
- Warranty: The FACOM JET series is manufactured in France to the highest specifications and standards
- Each model is carefully tested to evaluate and validate its performance and comes with a five year warranty
- The drawers are tested over 50,000 opening/closing cycles, i.e. 10 years of use
