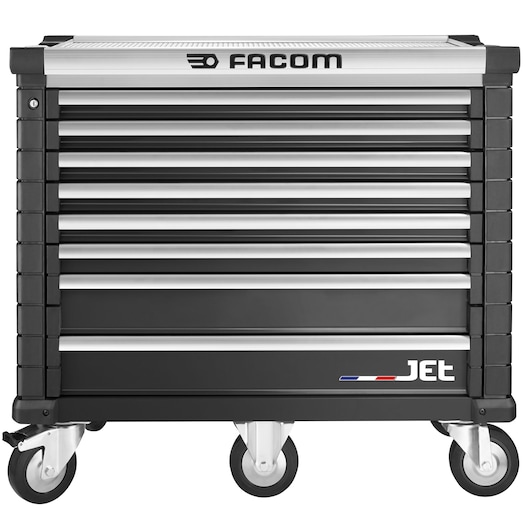

Roller Cabinet, 8 Drawers, L 948 x H 421 mm, 5 Modules per Drawer, Black, 0,46 m² Top
JET.8NM5A
Roller Cabinet, 8 Drawers, L 948 x H 421 mm, 5 Modules per Drawer, Black, 0,46 m² Top
- 8 drawer roller cabinet = 40 modules in 60 and 130 mm drawers
- 6 drawers height 60 mm = 30 modules
- 2 drawers height 130 mm = 10 modules
Additional Features
- The drawers can be equipped with all the thermoformed or foam modules of the FACOM Modular system
- The 200 and 270 mm drawers can also be fitted with modules
- Fully opening drawers: Thanks to the ball bearing slides, the drawers open fully and have a capacity of 35/40 kg
- The "self-close" system with spring return offers an efficient and secure closure. 100% opening drawers for optimum ease of use
- Total load capacity of the drawers: 290 kg
- Total storage capacity: 250 litres
- Usable drawer dimensions: L 948 x D 421 x H 60/130 mm
- Supplied with 4 JET2.15 partitions for 60 mm drawers and 4 JET2.16 partitions for 130 mm drawers
- Additional partitions can be purchased as an option if required
- Worktop: Extra large work surface, usable area 987 x 461 mm, 0,46 m². +25% vs JET
- High resistance: 2 mm thick aluminium plate covers a 15 mm thick wooden board. The ends are made of shock-resistant polypropylene. The tray can be fitted with a vice, is resistant to impacts and hydrocarbons and to a static load of 1100 kg
- Even more functional: Integrated bi-material handle with soft grip on each side of the trolley. One for moving and one for lifting the trolley over obstacles
- Innovation: The aluminium worktop rails have been designed as an integrated accessory hanging system
- The installation of accessories is fast and secure
- A wide range of accessories is available and will allow you to customise your workstation according to your needs to make it a real workstation
- Dedicated slots for 8 screwdrivers
- Integrated ledges prevent tools from falling out while moving
- Ergonomic and secure drawers: Exclusive design of aluminium tilting drawer handles with safety hooks. No risk of opening while in motion
- The high-quality self-closing system ensures closure and increases safety
- Central locking system with key lock, supplied with 2 keys, 1 of which is hinged
- Elastomeric thermoplastic bumpers on the 4 corners and on the drawers for shock absorption and damper effect
- Manoeuvrability: Low starting effort, long life, high resistance to heavy loads
- 6 wheels diameter 160 mm for very high performance, 4 swivel including 2 with brakes for an extra stability while working and 2 fixed
- 360° function: Very easy to park
- The trolley is delivered with the wheels already mounted
- Accessories: The worktop and sides of the trolley can be fitted with a wide range of accessories, from the most basic to the most sophisticated
- Top chest available as optional unit for added volume and flexibility
- Warranty: The FACOM JET series is manufactured in France to the highest specifications and standards
- Each model is carefully tested to evaluate and validate its performance and comes with a five year warranty
- The drawers are tested over 50,000 opening/closing cycles, i.e. 10 years of use
Specifications
Locking System
|
Central
|
Drawer Separators
|
Yes
|
Material of Drawer Corner Protectors
|
Soft Plastic
|
Possibility of Accessorization
|
No
|
Type of Side Handle
|
Plastic
|
Wheel Diameter [Metric]
|
125 mm
|
Worktop with Integrated Handles
|
Yes
|
Color
|
Black 9005
|
Bumper Effect
|
Yes
|
Material of Box Corner Protectors
|
Hard Plastic
|
Number of Handles
|
1
|
Worksurface Can Receive a Vice
|
No
|
360' Rotation Capacity
|
Yes
|
Additional Top Chest Can be Added
|
No
|
Drawer Depth [Metric]
|
421 mm
|
Maximum Worktop Load [Metric]
|
1100 Kg
|
Number of Drawers
|
8
|
Tilting Handle
|
No
|
Wheels with Brake
|
Yes
|
Drawer Mat
|
No
|
Product Height [Metric]
|
1035 mm
|
Number of Swiveling Wheels without Brake
|
2
|
Drawer Height [Metric]
|
60-130 mm
|
Product Weight [Metric]
|
110 Kg
|
Number of Fixed Wheels with Brake
|
1
|
Number of Wheels
|
6
|
Product Handle Type
|
Plastic
|
Number of Drawer Separators
|
40
|
100% Opening of Drawers
|
Yes
|
Available Accessories
|
Partitions/Drawer Separtors
|
Body Metal Thickness [Metric]
|
1 mm
|
Drawer Capacity [Metric]
|
290 Kg
|
Drawer Length [Metric]
|
948 mm
|
Drawers Total Weight Capacity [Metric]
|
290 Kg
|
Number of Fixed Wheels without Brake
|
1
|
Self-Closing Slides
|
No
|
Slides Material
|
Metal
|
Type of Lock
|
Key
|
Anti-tip System - One Drawer At A Time
|
No
|
Product Length [Metric]
|
1194 mm
|
Static Overall Weight Capacity [Metric]
|
1100 Kg
|
Surface Treatment
|
Chrome
|
Worktop Material
|
Aluminum
|
Secure Closing System - Safety Hook
|
Yes
|
Worksurface Can Receive Accessories
|
No
|
