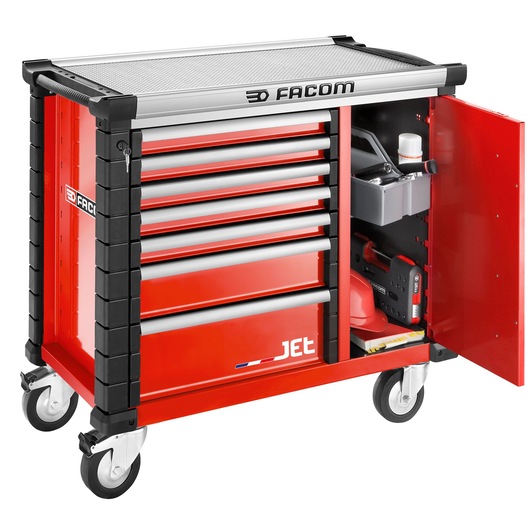

Mobile Bench 7 Drawers, L 569 x H 421 mm, 3 Modules Per Drawer, 0,46m² Top
JET.T7M3A
Mobile Bench 7 Drawers, L 569 x H 421 mm, 3 Modules Per Drawer, 0,46m² Top
- 7 drawers mobile workbench = 18 modules distributed in the 60 and 130 mm drawers
- 5 drawers height 60 mm = 15 modules
- 1 drawer height 130 mm = 3 modules
Additional Features
- 1 drawer height 200 mm
- Drawers can be fitted With thermoshaped or foam modules from FACOM Modular system program. The 200 mm drawers can also be fitted With modules
- Load resistance per drawer: 20/25/35 kg
- Equipped With ball bearing slides, total extension With "self close" return spring for an efficient and secure closure. 100% opening drawers for optimum ease of use
- Total load in the drawers: 155 kg
- Total storage capacity: 155 liters
- Drawers useful dimensions: L 569 x D 421 x H 60/130/200 mm
- 1 full-length closed compartment for storing long tools: Door With key lock. Identical key for the drawers and the compartment
- Compartment dimensions: 378 x 450 x 750 mm (passage Width With door open 286 mm)
- The compartment is equipped With a removable shelf 3760 x 382 adjustable in steps of 70 mm With front/rear edge
- Supplied With the plastic tray, 2 partitions JET2.15 for 60 mm drawers and 2 partitions JET2.16 for 130 mm drawers
- Additional metal partitions can be ordered separately if needed
- Worktop: Extra large worksurface. Useful dimension 987 x 461 mm, 0.46 m²
- High resistance: 2 mm aluminium plate (rice grain finish) covers a 15 mm wooden board. The end caps are made of impact-resistant polypropylene. The worktop can receive a vice and is resistant to impacts and hydrocarbons and a static load of 1100 kg
- Even more functional: Integrated bi-material handles With soft coating on each side of the cabinet. One for moving and one to lift the roller cabinet and ride over obstacles
- Innovation: The aluminium rails of the worktop have been designed as an integrated hanging system for accessories. The installation of accessories is fast and secure. A wide range of accessories is available and will allow you to customize your roller cabinet according to your needs to make it a real workstation
- Dedicated slots for 8 screwdrivers
- Built-in edges prevent tools from falling on the move
- For a wood top version, just add wood top JET.WA14M5 to cover 100% of the worktop, or JET.WA14M3 or JET.WA14M4 for a partial cover
- Ergonomic and safe drawers: Exclusive FACOM design ensuring easy grip. Lifting handpulls made of anodized aluminum With safety hook avoiding any opening while
- Premium self-closing system ensures secure closure and further safety
- Centralized locking system, delivered With 2 keys, one folding
- New soft bumpers in elastomeric thermoplastic With damper effect shock on the 4 angles and on drawers protecting the safety hook
- High performance maneuverability: Reduced start-up effort (less than 7 kg thrust). Long lifetime (resists to chipping, common hydrocarbons). High resistance to heavy loads
- 4 Wheels diameter 125 mm, 2 fixed and 2 swivel, each equipped With a brake for more stability when working at a standstill
- Roller cabinet delivered With Wheels already attached
- Accessories: Worktop and sides can receive numerous accessories from the most basic to the most sophisticated ones
- Top chest available as optional unit for added volume and flexibility
- Warranty: The FACOM JET Series is made in France to the highest specifications and manufacturing standards
- Each model is thoroughly tested to assess and validate its performance and comes With a five year manufacturer’s warranty
- The drawers are tested over 50 000 opening/closing cycles, i.e. 10 years of use
Specifications
|
Work Facilitation Product Type
|
Workbench/Vice
|
|
Product Height [Metric]
|
1035 mm
|
|
Product Weight [Metric]
|
102 Kg
|
|
Leg Material
|
Metal - Steel
|
|
Connectivity
|
No
|
|
Is it a Set
|
No
|
|
Product Length [Metric]
|
1194 mm
|
|
Open Depth [Metric]
|
546 mm
|
|
Worktop Material
|
Metal - Steel
|
Support
Warranty
- 5 Year Guarantee*
If this product becomes defective due to faulty materials or workmanship within 5 years from the date of purchase, we guarantee to repair or replace it free of charge.
*Terms & conditions apply.
