Outside Puller, Maximum Depth 140 mm
U.306A140
Outside Puller, Maximum Depth 140 mm
- Versatile: takes 2 or 3 legs. Converts into inside puller with the legs U.306G2 + screw U.306-4 or legs U.306G20 + screw U.306-2.
- Comfort: self-gripping legs by return spring. The puller stays in rolling position even when not in tension.
- Safety: legs locked in position on the bearing using a knob. No risk for the puller to escape from the bearing.
Product Overview
The U.306 Outside Pullers - U.306A140 are very versatile providing a full range of pulling solutions with an easy-to-use system that allows self-gripping and self-centering to make the process easier.
Additional Features
- Shear pin: the pin shears if torque limit is exceeded. Supplied with 2 spare pins.
- Set of 3 spare pins. Refer to spares table according to puller power.
- Adaptable puller accessories: slide hammer U.306M (direct attachment) and beam U.40 (attached using ring and nut U.306A1 to be ordered separately).
- Capacity diameter 7-140 mm
- Capacity 3 t

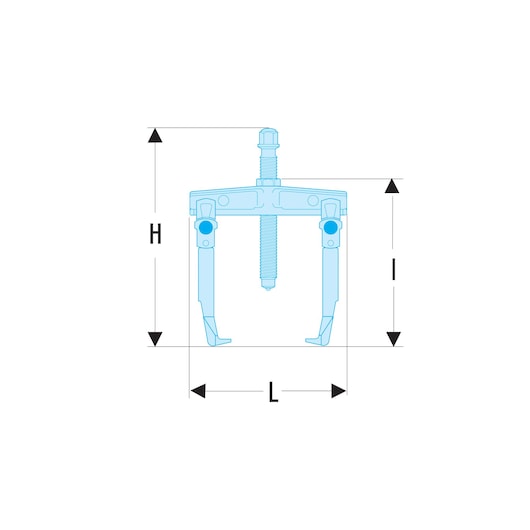

Specifications
|
Max. Clip Capacity [Metric]
|
7-140 mm
|
|
Puller Profile
|
Wide
|
|
Product Width [Metric]
|
225 mm
|
|
Self Gripping
|
Yes
|
|
Outside/ Inside Puller
|
Outside
|
|
Stud Driver Diameter Type
|
Single Diameter
|
|
CE Mark
|
Yes
|
|
Number Of Legs
|
3
|
|
Hex Size [Metric]
|
18 mm
|
|
Product Height [Metric]
|
262 mm
|
|
Product Weight [Metric]
|
1.6 Kg
|
|
Width Capacity [Metric]
|
130 mm
|
|
Metric Ton (T)
|
3T
|
|
Number Of Spare Pins / Tips
|
3
|
|
Reversible
|
No
|
|
Type Of Puller
|
Special Grip Bearing Pullers
|
|
Number of Pieces
|
1
|
|
Special Grip
|
Yes
|
|
Is it a Set
|
No
|
|
Product Length [Metric]
|
130 mm
|
|
Open Depth [Metric]
|
147 mm
|
|
Tapping
|
M16
|
Support
Warranty
- Lifetime Replacement Guarantee*
If this product becomes defective due to faulty materials or workmanship within its lifetime, we guarantee to replace it free of charge.
*Terms & conditions apply.
